¡á Brief
¢º Compatible
with the IEEE Std.1188-2005 maintenance recommendations on VRLA batteries,
¢º Measureeach Voltage, Temperature and Internal Resistance on VRLA and Ni-Cd batteries,
¢º Use
a single CAN (Controller Area Network) BUS between Master and 100 Sensors,
¢º Measure all voltage
& temp. in a 1 sec, and all internal
resistance on 400 cells in 30 sec.

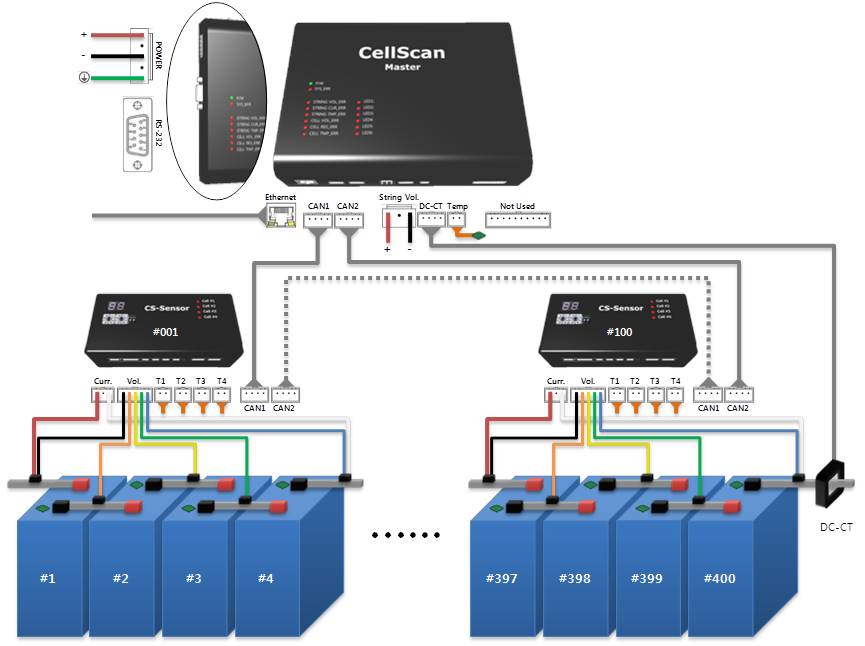

¡á Configuration
¡á Features
¢º The measuring speed of CAN (Controller
Area Network) is very fast, and
¢º During a discharge, a bad cell or
inter-connection can be found by a measuring a voltage drop.
¢º UPS with CAN communication can
communicate directly with Sensor (without Master)
|

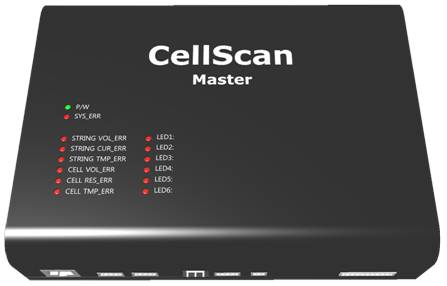

CellScan Master (Master)
|
CS-Sensor (Sensor)
|
|
System
Capacity
|
Measuring Capacity
|
|
Max q¡¯ty of
sensor
|
100 Sensor per 1 Master
|
Type of sensor
|
LV sensor
|
4 cell measured by 2V/4V/6V/8V sensor
|
|
String
current and voltage
|
Each 1 pcs
|
HV sensor
|
4 cell measured by 12V sensor
|
|
Comm. port
|
CAN bus (2) for Ring, Ethernet (1),
RS-232 (1)
|
Comm.
port
|
2 line of CAN BUS, which is the high
reliable.
|
|
Ambient temp.
|
1 pcs
|
Temp. sensor
|
4 pcs
|
|
Measuring
Speed
|
Measuring
Speed
|
|
String
voltage
|
0.1 sec
|
To measure each voltage and temperature on 400 cells
|
1 sec
|
|
|
|
To measure an internal resistance on 400 cells
|
30 sec
|
|
Range
& Accuracy
|
Range
& Accuracy
|
|
String voltage
|
~ 1,000VDC / ±0.5%
of full scale
|
Cell voltage
|
~ 9.0V / ±0.1% of ±10mV ( 2V)
|
|
String current
|
~ 1,000ADC / ±1.0% of full scale
|
~ 17.0V / ±0.1% of ±20mV (12V)
|
|
String ripple
current
|
~ 1,000Ap-p / ±5.0%
of full
scale
|
Cell temperature
|
-20 ~ +80¡É / ±1¡É
|
|
Ambient temp.
|
- 20 ~ 80¡É / ±1¡É
|
Cell internal
resistance
|
0.1m§Ù (4,000Ah) ~ 100.0m§Ù / ±2.0%
|
|
Resolution
|
Resolution
|
|
String voltage
|
0.1V /
0.1A String current
|
Cell voltage
|
1mV
|
|
String ripple
current
|
0.1Ap-p /
0.1¡É Ambient temperature
|
Cell temperature
|
0.1 ¡É
|
|
|
Cell internal
resistance
|
0.001m§Ù
|
|
Dimensions & Environment
|
Dimensions & Environment
|
|
Dimensions
|
200 × 150 × 34§®
(45§®)
|
Dimensions
|
128 × 61 × 35§®
|
|
Environment
|
Temperature: 0~50 ¡É
/ under Humidity: 80%RH
|
Environment
|
Temperature: 0~50 ¡É
/ under Humidity: 80%RH
|
|
Feature
|
?When the digit of
CAN ID flash, CAN bus is abnormal.
?When CAN ID and its
communication are abnormal, it will be displayed.
?The measuring
period on cell voltage and temperature is (1 sec), and to measure an internal
resistance on all cells is (30 sec) in maximum, which are changeable.
|
Feature
|
?When the digit of
CAN ID flash, CAN bus is abnormal.
?When CAN ID and its
communication are abnormal, it will be displayed.
?The measuring
period on cell voltage and temperature is (1 sec), and to measure an internal
resistance on all cells is (30 sec) in maximum, which are changeable.
|
¡á CellScan Software
¢º To
monitor the measured data by CellScan analysis program in a real time.
¢º To
show all statistical data on all strings of batteries measured by CellScan.
¢º
To show all alarm list in a real time and to record all history to
operate.
¢º To
show each Voltage, Temperature and Internal-Resistance measured.
¢º To
show a charging and discharging current and ripple current (waveform & FFT
analysis).
¢º To
show save a all measure data on a discharging and history information.
¢º To
show the function of a discharging re-play.
¢º To
supply e-mail and SMS service (option) ¡¡
¡á CS-Master
¢º 1 pcs of Master can link
max.
¢º 100 * 2V or 12V sensors, which is 2V * 400
cells or 12V * 400 modules.
¢º 201 × 151 × 37§®
¡á¡¡CS-Sensor
¢º 1 pcs of Sensor can
measure max. 4 * 2V or 12V batteries.
¢º 128 × 61 × 35§®
¡á¡¡Accessories
¢ºSensor-Guide
¢º Clamp to install battery cables / ¢ºSensor Voltage Cable
¢ºTemperature sensor
¢º DC Current transformer
o CellScan BMS Catalog : http://www.jsdata.co.kr/en/lem/CellScan_BMS_eng_Cat.pdf
o Proposal of CellScan BMS : http://www.jsdata.co.kr/en/lem/CellScan_BMS_eng_prop.pdf
Contact : Sales director ( support@jsdata.co.kr¡¡/¡¡ jaeshininfo@korea.com ) for CellScan system
Tel : +82-31-388-7874 Fax : +82-31-388-7854
