IGR Leakage Current Analyzer is invented as the world first, and also can measure Insulation Resistance (M¥Ø) without power cut-off. This patented instrument can analyze leakage current, and display Igr(resistive), Igc(capacitive), and Io(vector sum), Ground Insulation Resistance, and the phase angle between voltage and current.
 Conventional product (Io ELB)
- Operates due to Io.
- Malfunction due to Igc in digital era. ( Tripping down on Harmonics and noise area)
- Sensitive leakage current is too high for people.
- Impossible to lower Igr because of its sensitivity.
New invented product (IGR ELB)
- Operates due to Igr.
- Properly-operating in spite of IGC in digital era. ( Not tripping on UPS load and Harmonics and noise area)
- Possible to go down Igr for safety of people and animals.
- Possible to manufacture high sensitive ELB.
- Possible to prevent fire from electric leakage current.

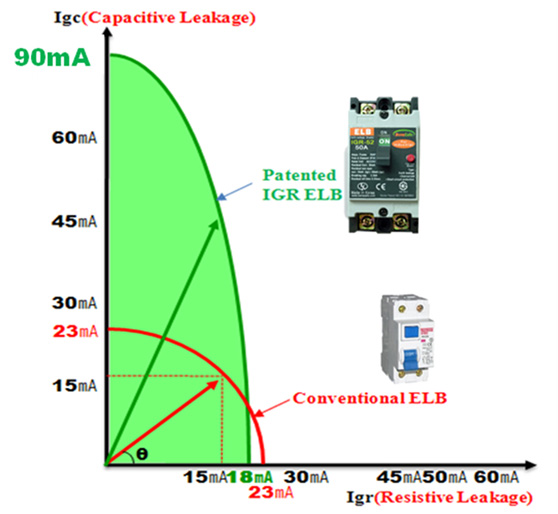

The IGR breaker can cover 20 PCs sets, but conventional(Io) breaker can cover only 10 PCs sets per one breaker because of residual capacitance leakage current.
¡¡Specification
| Model Name |
IGR32(Small size) |
IGR52(Middle size) |
| Picture |
 |
 |
| Number of poles and elements |
2P2E |
2P2E |
| Rated current (A) |
15, 20, 30 |
20, 30, 40, 50 |
| Rated Voltage (Ue) ( AC V ) |
220 |
220 |
| Protective function
|
Overcurrent and short-circuit protection |
| Frequency Ue (Hz)
|
50 / 60 |
50 / 60 |
Residual current, Fixed (mA)
|
10?/ 15 |
10 / 15 / 30 |
| Residual non-operating current (Igr : mA) |
6 / 7.5 |
6 / 7.5 / 15 |
| Residual non-operating current (Igc : mA) |
30 / 45 |
30 / 45 / 90 |
| Residual current off-time (sec) |
0.03 |
0.03 |
| Ultimate Breaking Capacity (KA), Icu 220V
|
2.5 |
5 |
¡¡Specification
 |
 |
 |
 |
| CE Marking |
IEC60947-2 |
EN60947-2 |
KS C 4613 |
¡¡IGR ELB Application
High humidity area (Bathroom, Pump control , Steam room)
Children¡¯s playing tools
Industrial Area (UPS Load, Harmonics, Noise )
Public (Museum, Street Lighting, Fountain, Station, Hospital)
|
